USAF resolution charts are recognised the world over as a universal standard for testing thevertical and horizontal resolution of imaging systems. Each element on the chart comprises threevertical bars and three horizontal bars, and the detail on these slides is as fine as 0.78microns (644line-pairs per mm). The resolution of the imaging system is normally specified as the Group andElement of the finest bars that can be clearly defined - See further information on back page of brochure.
Model | Description | Pattern |
R70 | USAF Resolution Test Chart, Positive Image, Group 0 Element 1 to Group 7 Element 6; Dimensions： 50mm x 50mm x 2mm |
|

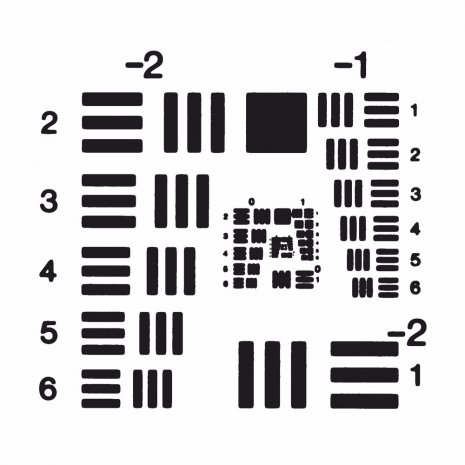

R71 | USAF Resolution Test Chart, Positive Image, Group -2 Element 1 to Group 7 Element 6; Dimensions： 75mm x 75mm x 1.5mm |
|
R75P | USAF Resolution Test Chart, Positive Image, Group 0 Element 1 to Group 9 Element 3; Dimensions： 50mm x 50mm x 2.8mm |
|

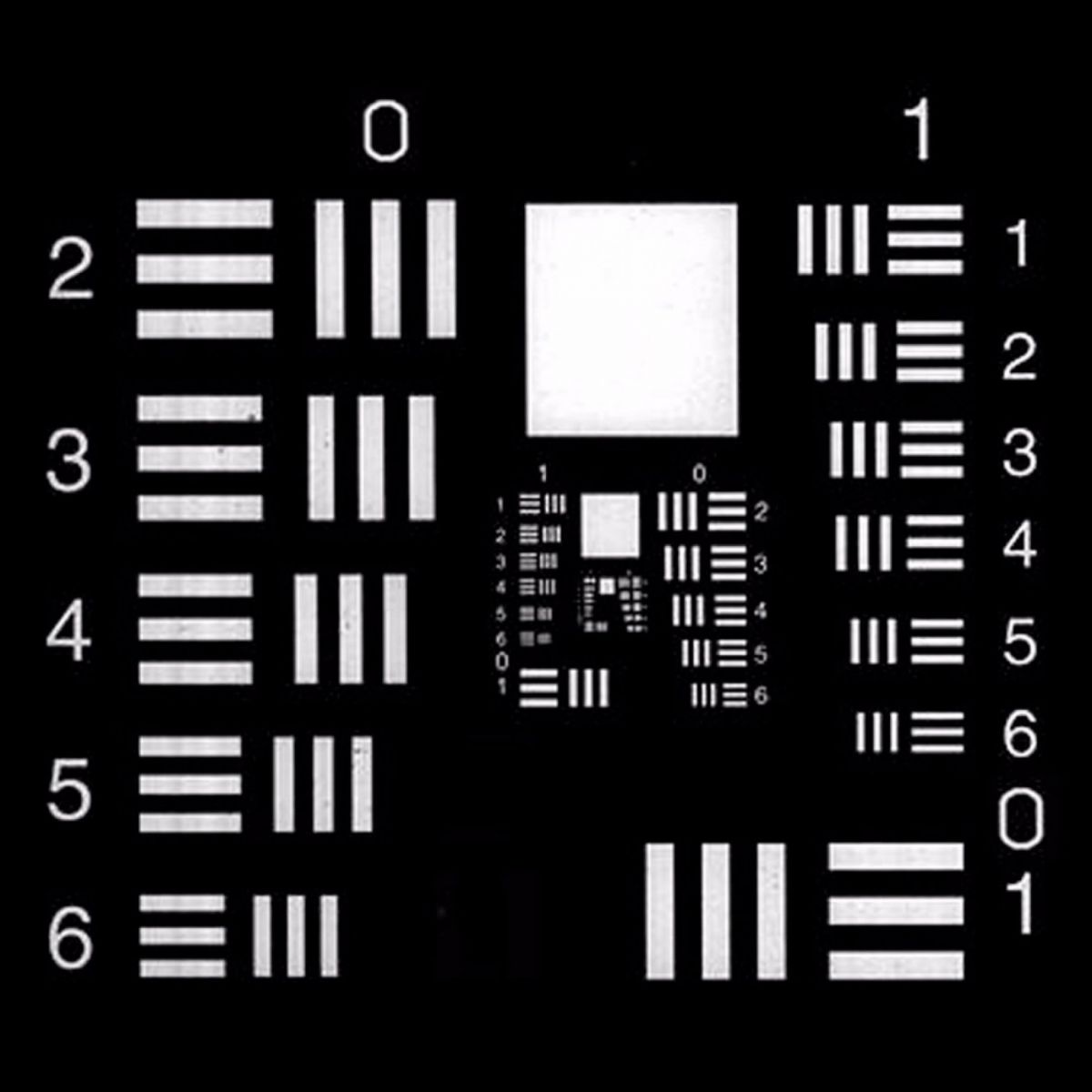

R75N | USAF Resolution Test Chart, Negative Image, Group 0 Element 1 to Group 9 Element 3; Dimensions： 50mm x 50mm x 2.8mm |
|
PS75P | USAF Resolution Test Chart, Positive Image, Group 0 Element 1 to Group 9 Element 3; Dimensions：76mm x 25mm |
|
PS75N | USAF Resolution Test Chart, Negative Image, Group 0 Element 1 to Group 9 Element 3; Dimensions：76mm x 25mm |
|
