Also known as Siemens star or sunburst pattern. It is used qualitatively to demonstrate focussingeffects, optical astigmatism and for rapid assessment of focal plane.
Mod | R65 | R66 |
Sector pitch | 10º | 5º |
Number of sectors | 36 | 72 |
Outside diameter of image | 25mm | 25mm |
Unresolved centre core | 0.2mm | 0.4mm |
Normal substrate | B270 Glass | B270 Glass |
Overall size | 50mm x 50mm x 1.5mm | 50mm x 50mm x 1.5mm |
Image type | Vacuum deposited chrome | Vacuum deposited chrome |

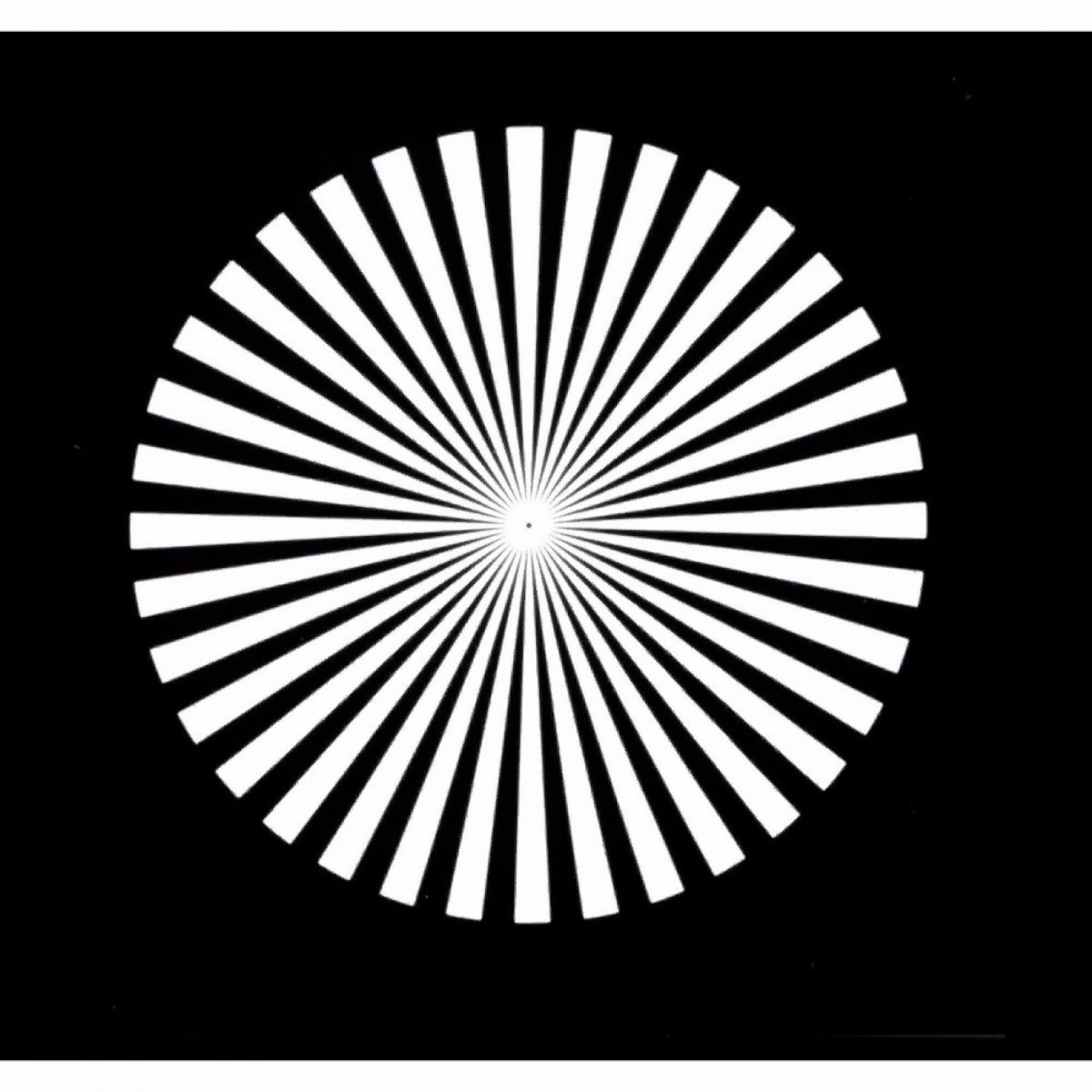

Pattern |
|
|
