PS-Range Stage Calibration Standards

Category：Graticules Optics
Visits： 33 Clicked
Date：2023-11-07 16:37:47
Download：
镜台测微尺/校准玻片资料

Details

stage micrometers professional range

Model	Pattern	Line Thickness	Description

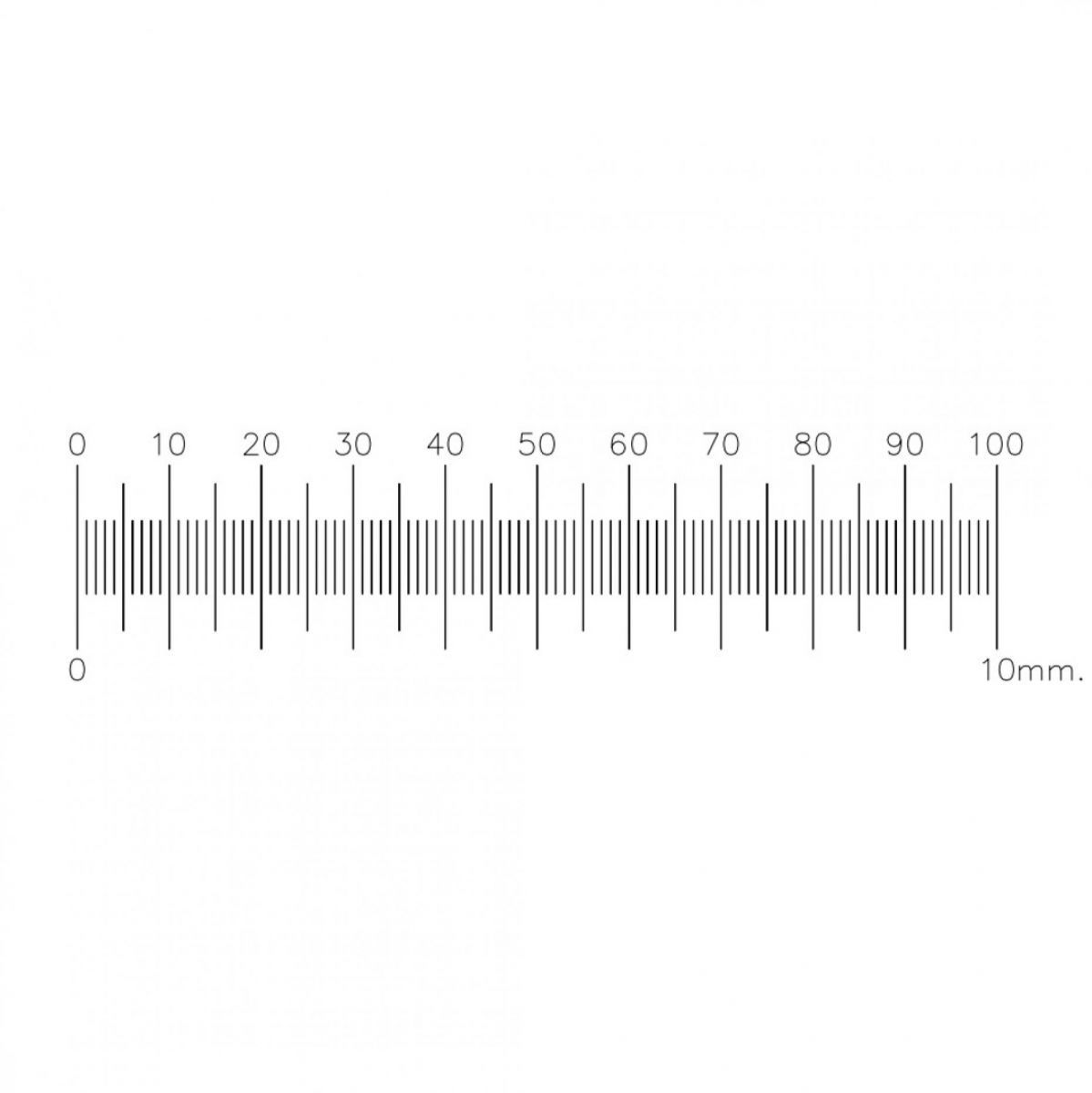

PS1		0.005mm(5μm)	Stage Micrometer with 10mm scale subdivided into 100 divisions of 0.1mm (100µm). For Transmitted Light.
PS1R		0.005mm(5μm)	Stage Micrometer with 10mm scale subdivided into 100 divisions of 0.1mm (100µm). For Reflected Light.

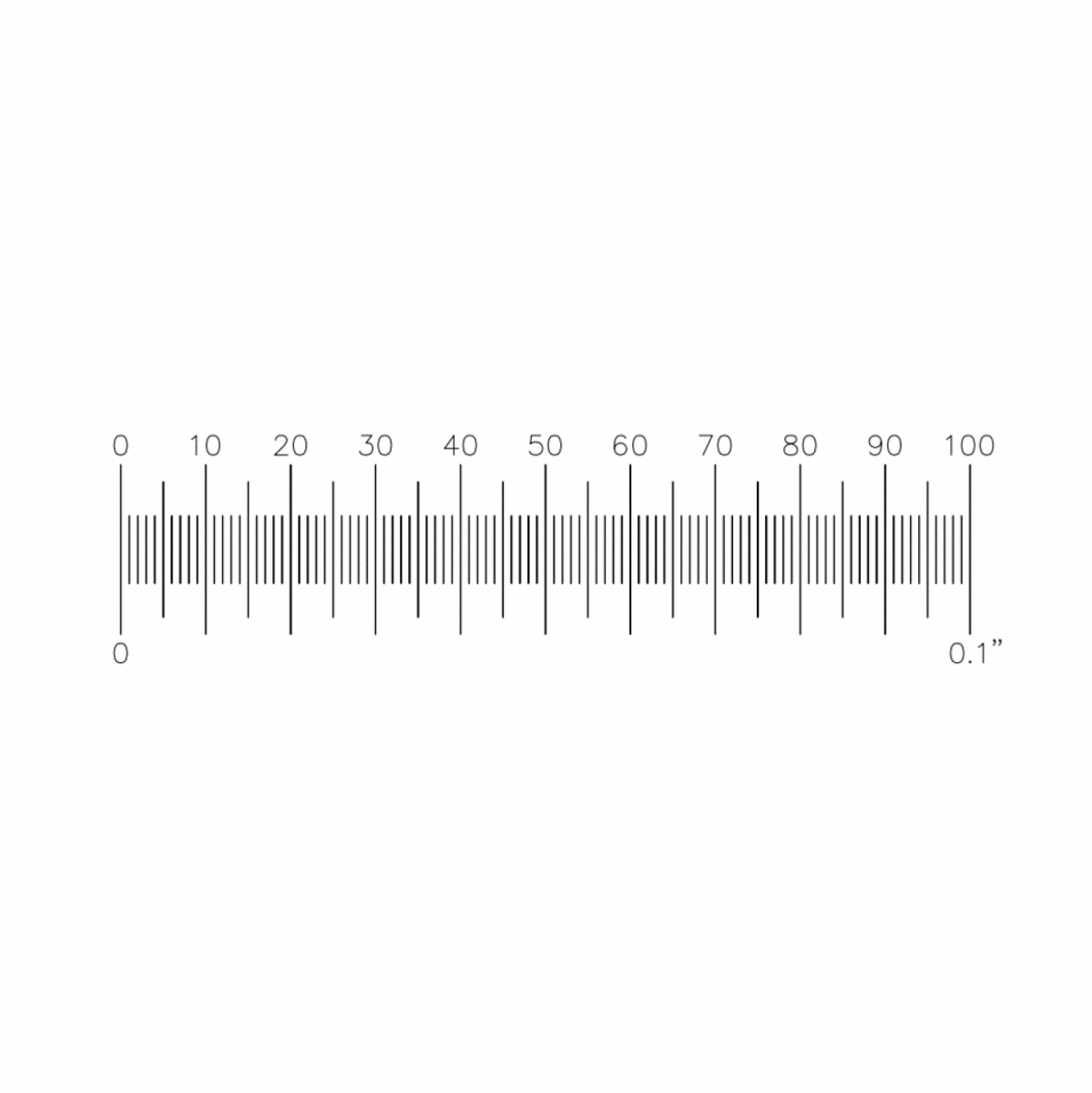

PS4		0.002mm(2μm)	Stage Micrometer with 0.1 inch scale subdivided into 100 divisions of 0.001 inch. For Transmitted Light.
PS4R		0.002mm(2μm)	Stage Micrometer with 0.1 inch scale subdivided into 100 divisions of 0.001 inch. For Reflected Light.

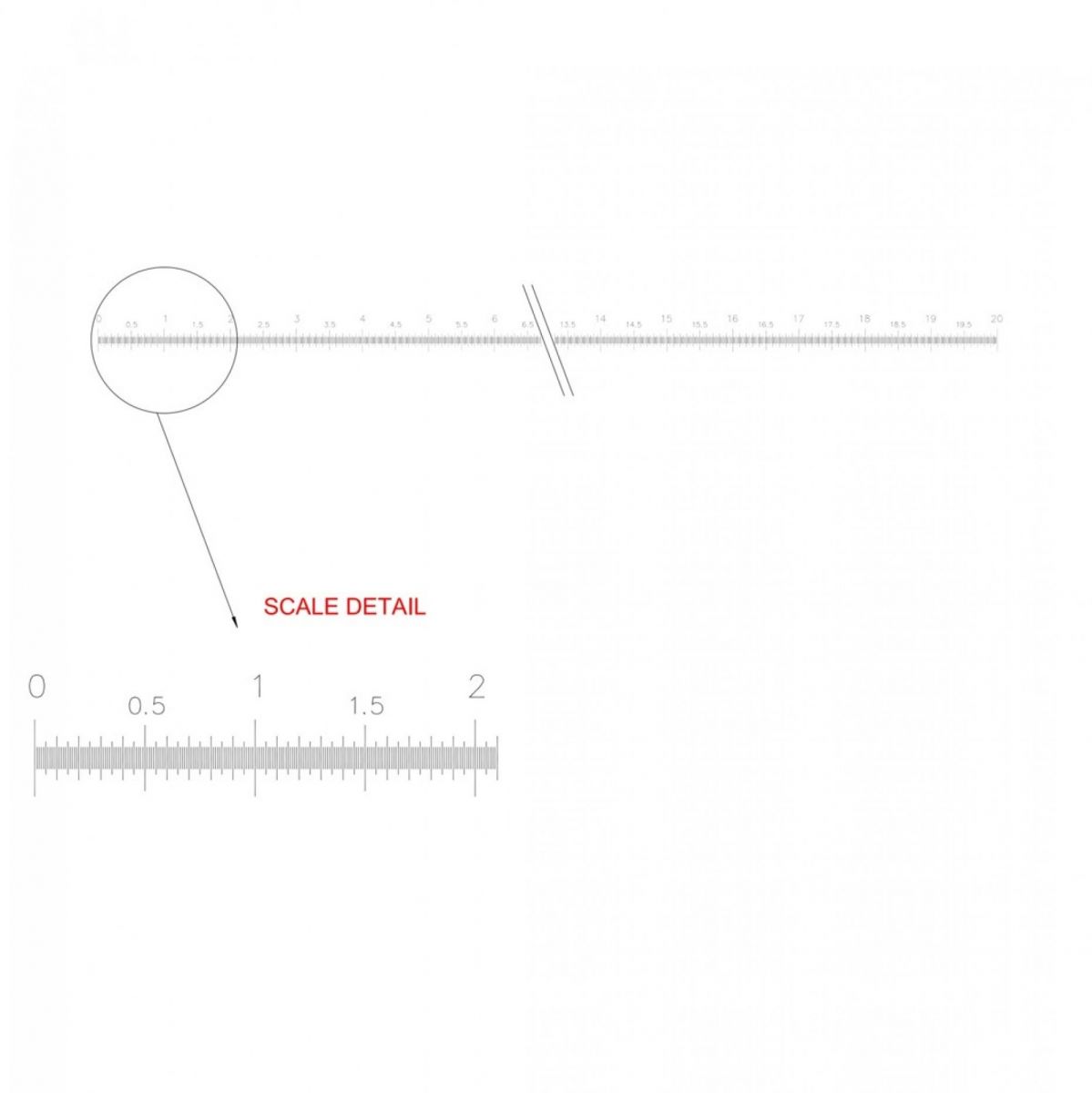

PS5		0.002mm(2μm)	Stage Micrometer with 20mm scale subdivided into 2000 divisions of 0.01mm (10µm). For Transmitted Light.
PS5R		0.002mm(2μm)	Stage Micrometer with 20mm scale subdivided into 2000 divisions of 0.01mm (10µm). For Reflected Light.

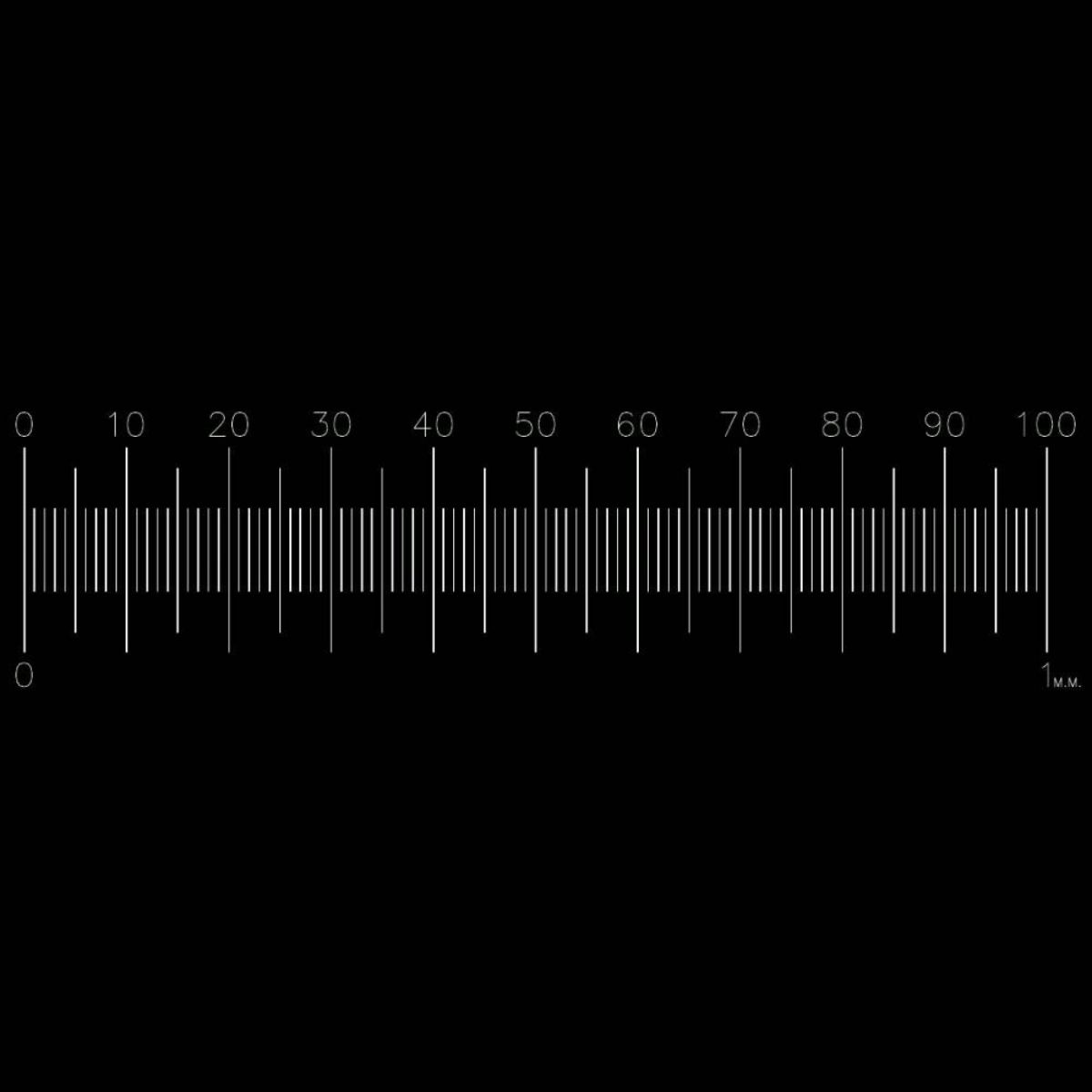

PS8		0.002mm(2μm)	Stage Micrometer with 1mm scale subdivided into 100 divisions of 0.01mm (10µm). For Transmitted Light.

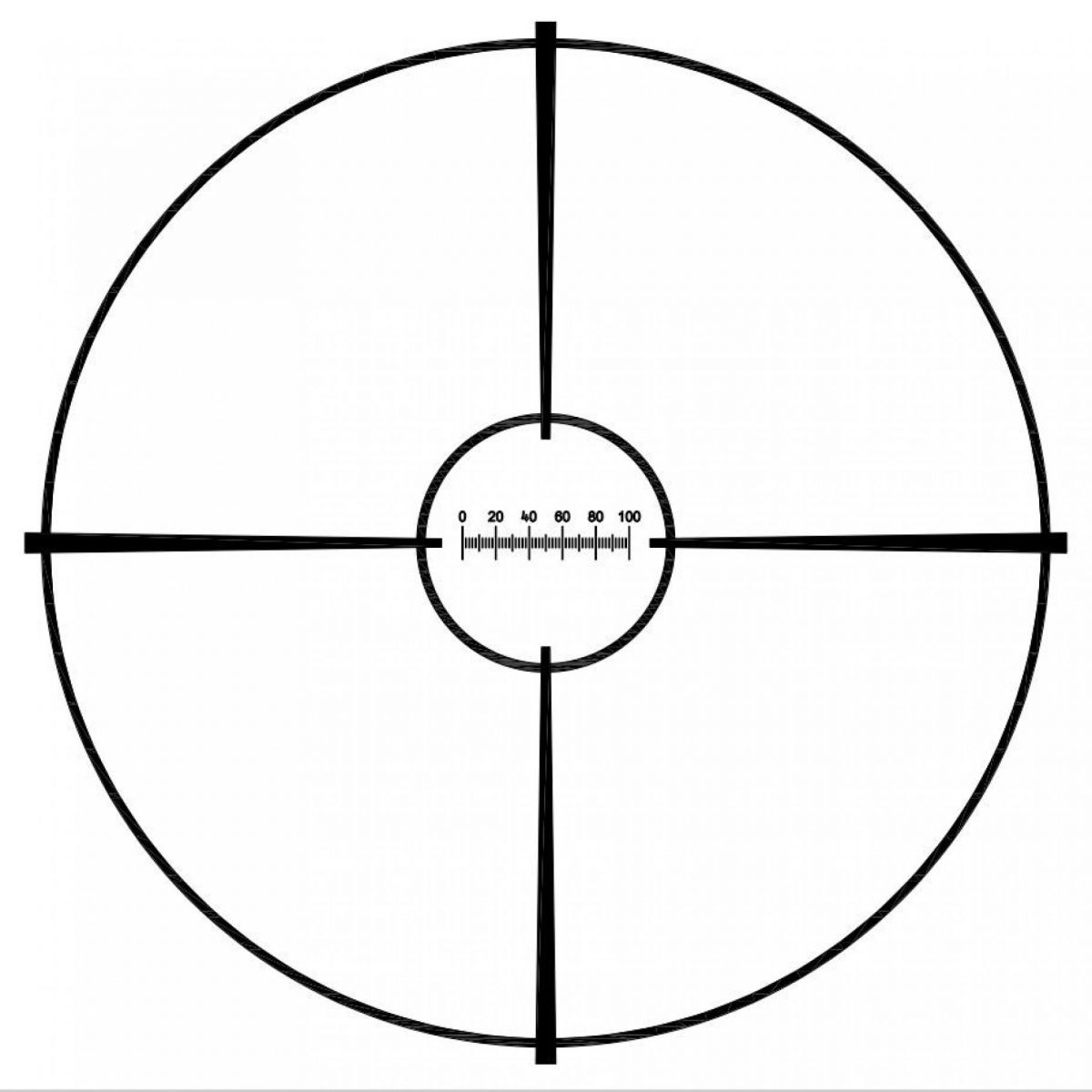

PS12		0.001mm(1μm)	Stage Micrometer with Scale 0.1mm (100um) length subdivided into 50 divisions of 0.002mm (2µm). For Transmitted Light.
PS16		0.003mm(3μm)	Stage Micrometer with Crossed Scales, each 1mm long subdivided into 100 divisions of 0.01mm (10µm). For Transmitted Light.
PS16R		0.003mm(3μm)	Stage Micrometer with Crossed Scales, each 1mm long subdivided into 100 divisions of 0.01mm (10µm). For Reflected Light.
PS78		0.003mm(3μm)	Stage Micrometer with 1mm scale subdivided into 100 divisions of 0.01mm (10µm). For Reflected Light.

Long Micrometer Scale

Model

Pattern

Line Thickness

Size（mm）

Description

PS50

ps50-pattern

0.012mm(12μm)

75 x 75 x 3

Long Calibration Scale with 50mm Scale subdivided into 500 divisions of 0.1mm (100µm).

New Dual Scale Calibration Slides

Pyser-SGI has introduced two new calibration slides that have the benefit of dual imperial/metric scales. The PS52P is for transmitted light applications and has a bright chrome positive image. The PS52N has a negative pattern, formed in low reflective chrome for incident light applications to give excellent contrast. Both are ideal for calibrating optical products with a large field of view, such as stereo microscopes or imaging systems.

Model	Pattern	Size（mm）	Description
PS52P		76 x 25 x 1.5	Dual Micrometer Calibration Slide with 50mm in 0.1mm (100µm) divisions and 2 inch in 0.005 inch divisions. For Transmitted Light.
PS52N		76 x 25 x 1.5	Dual Micrometer Calibration Slide with 50mm in 0.1mm (100µm) divisions and 2 inch in 0.005 inch divisions. For Reflected Light.
