S-Range Stage Micrometers-Horizontal and Crossed Scales

Category：Graticules Optics
Visits： 27 Clicked
Date：2023-11-07 16:33:51
Download：

Details

These stage graticules are intended for the routine calibration of eyepiece reticles particulary when alternating between objectives on one microscope or when using the same reticle in different microscopes. Their robust construction, with metal slide mount, makes them ideal for student use and for instructional purposes. The scale or grid is centred on a glass disc mounted in a black anodised aluminium slide 76mm x 25mm x 1mm thick. The image is created using vacuum deposited chrome which is resistant to normal wear and tear. Note: S18 is all glass scale. Versions are available for transmitted light and reflected (incident) light

Model	Pattern	Line Thickness	Description

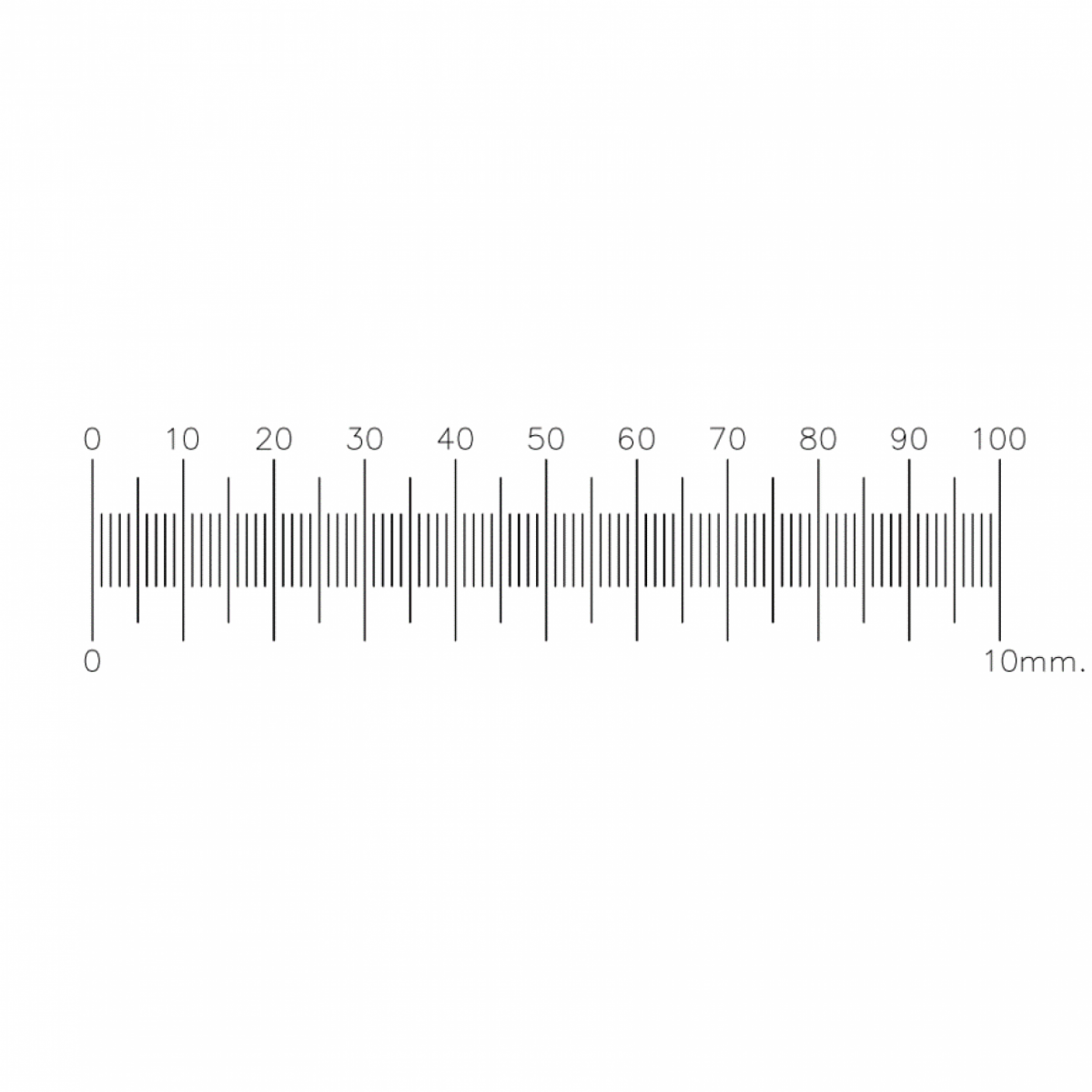

S1		0.005mm(5μm)	Stage Micrometer with 10mm scale subdivided into 100 divisions of 0.1mm (100µm). For Transmitted Light.

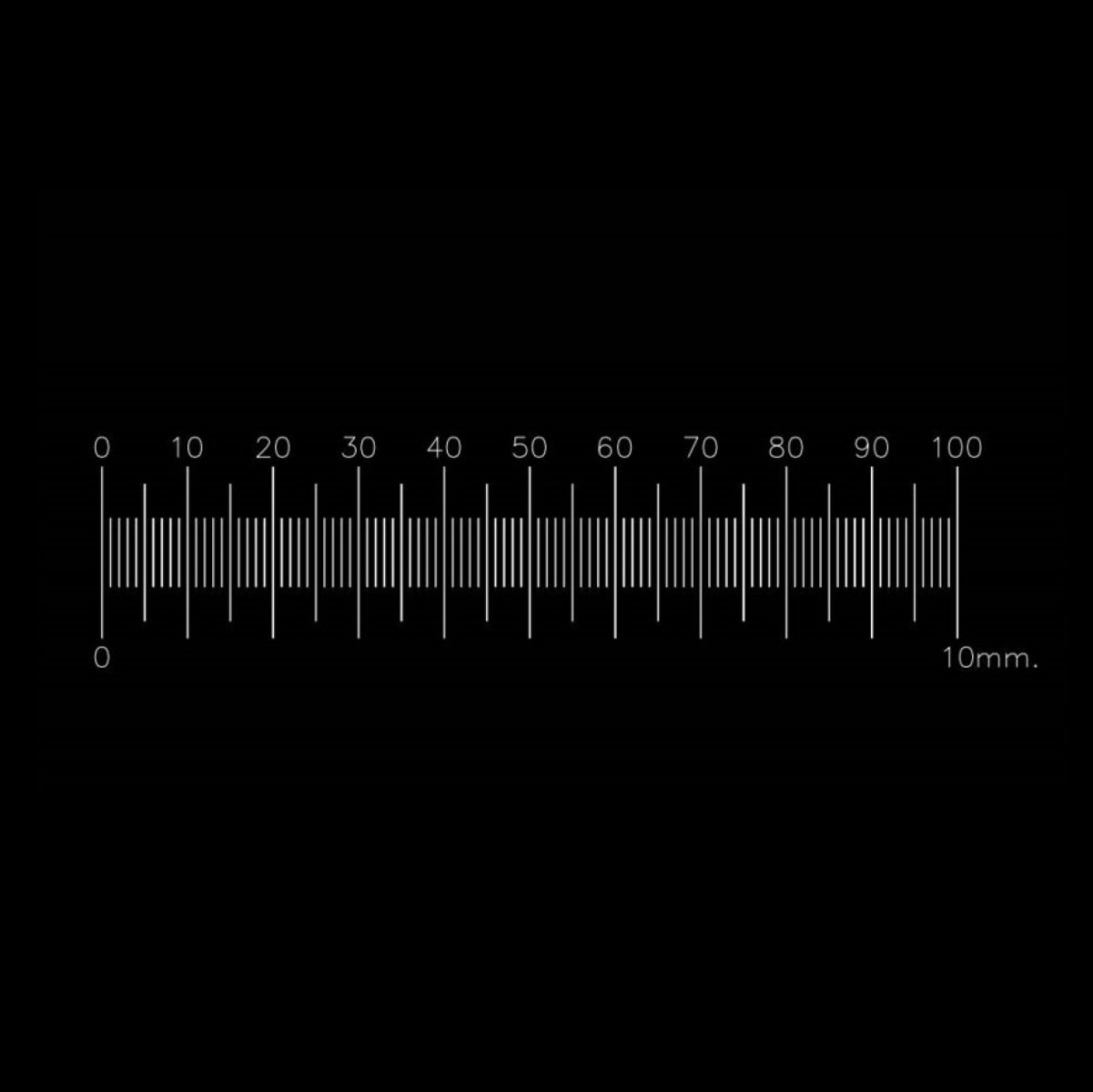

S1R		0.005mm(5μm)	Stage Micrometer with 10mm scale subdivided into 100 divisions of 0.1mm (100µm). For Reflected Light.
S2		0.005mm(5μm)	Stage Micrometer with 5mm scale subdivided into 100 divisions of 0.05mm (50µm). For Transmitted Light.
S4		0.002mm(2μm)	Stage Micrometer with 0.1 inch scale subdivided into 100 divisions of 0.001 inch. For Transmitted Light.
S4R		0.002mm(2μm)	Stage Micrometer with 0.1 inch scale subdivided into 100 divisions of 0.001 inch. For Reflected Light.

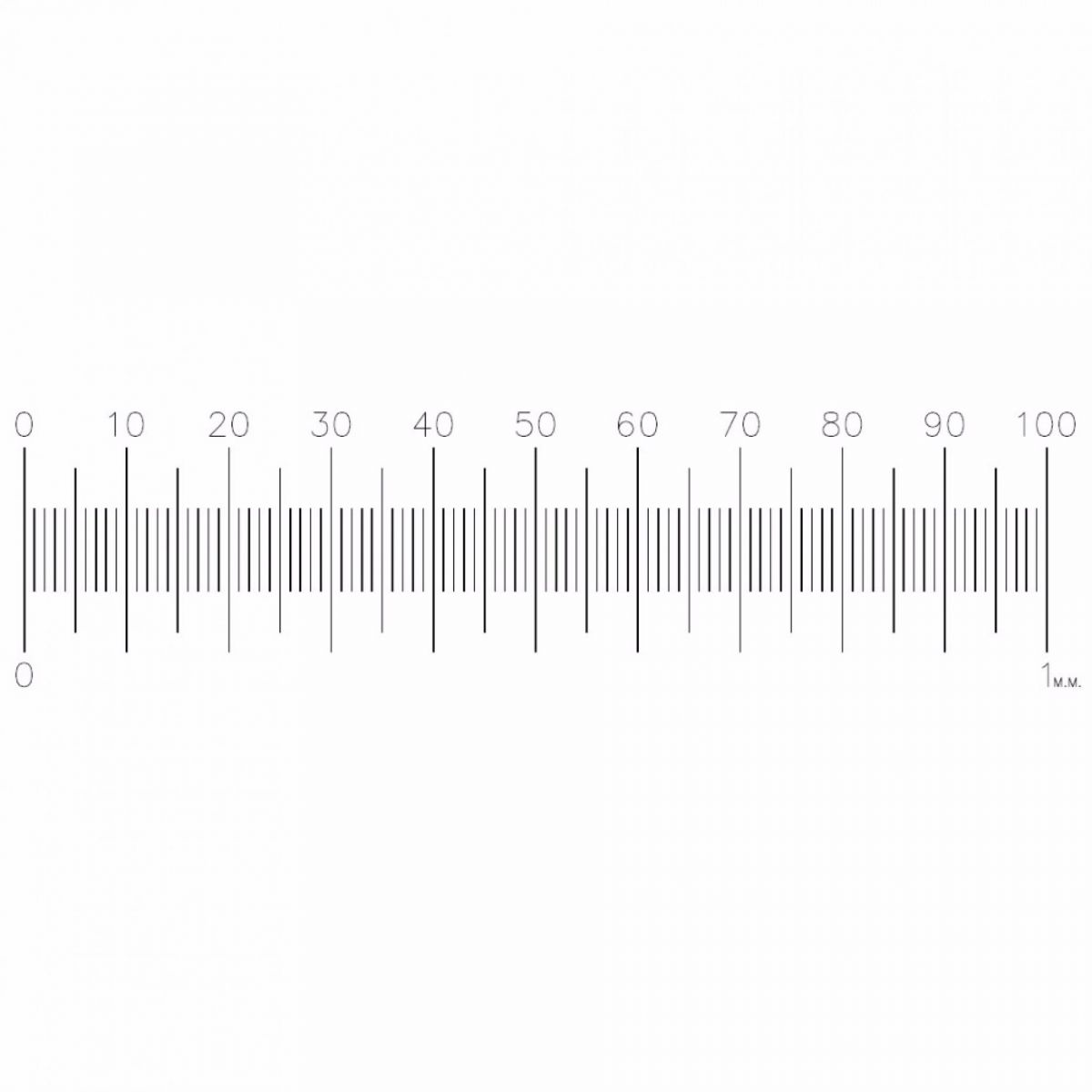

S8		0.002mm(2μm)	Stage Micrometer with 1mm scale subdivided into 100 divisions of 0.01mm. For Transmitted Light.

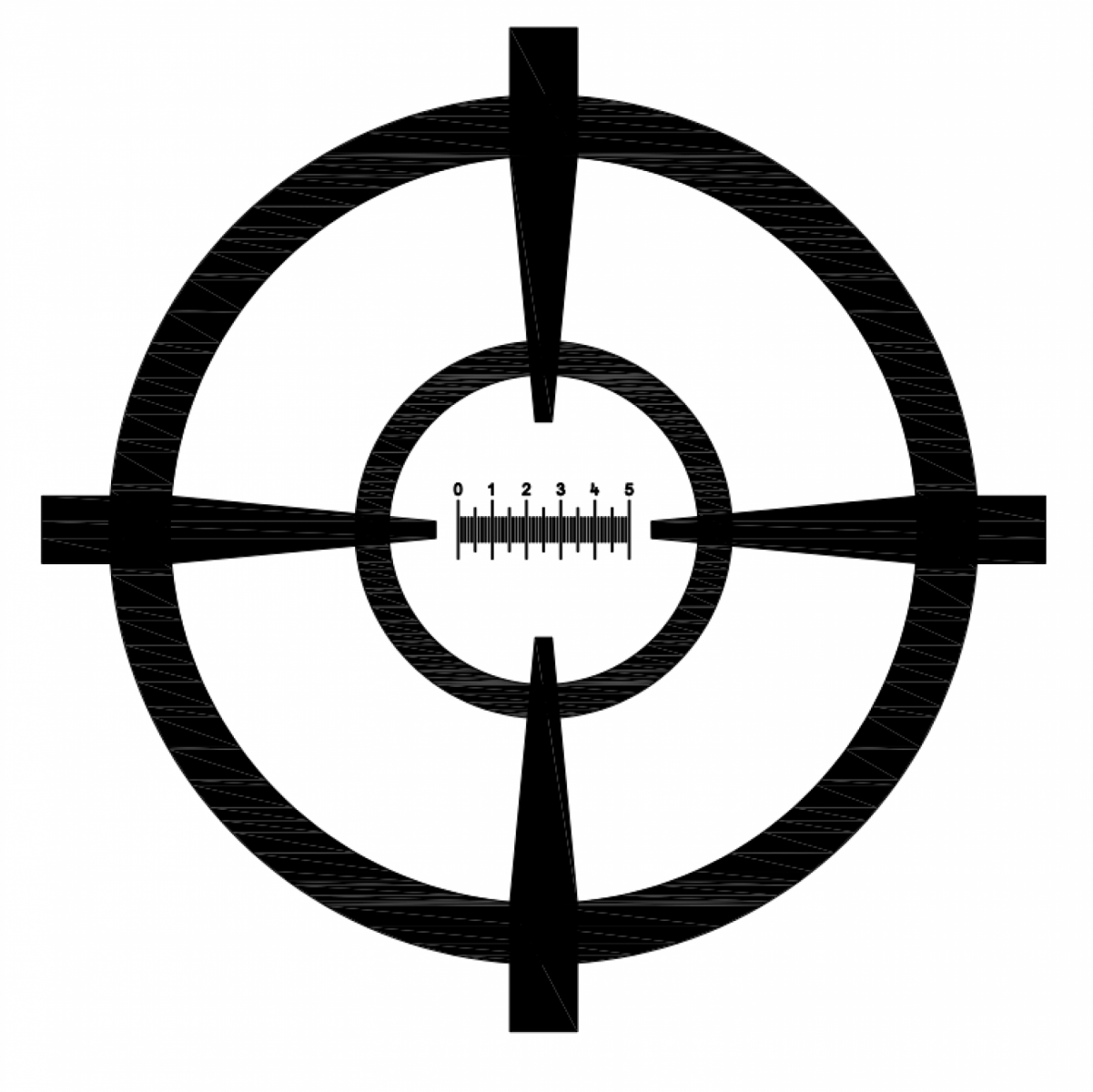

S11		0.001mm(1μm)	Stage Micrometer with 0.005 inch scale subdivided into 50 divisions of 0.0001 inch. For Transmitted Light.

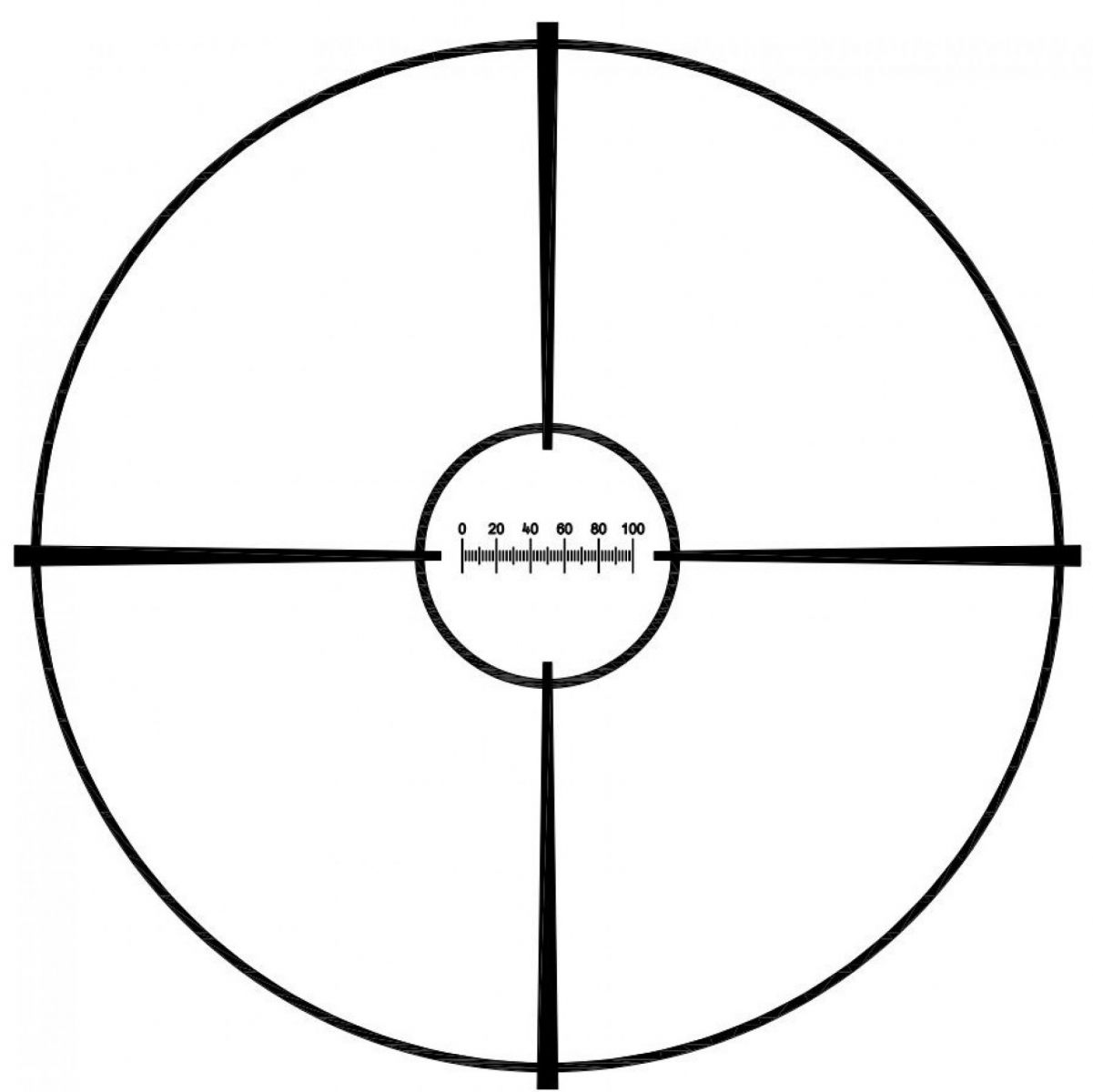

S12		0.001mm(1μm)	Stage Micrometer with 0.1mm scale subdivided into 50 divisions of 0.002mm (2µm). For Transmitted Light.

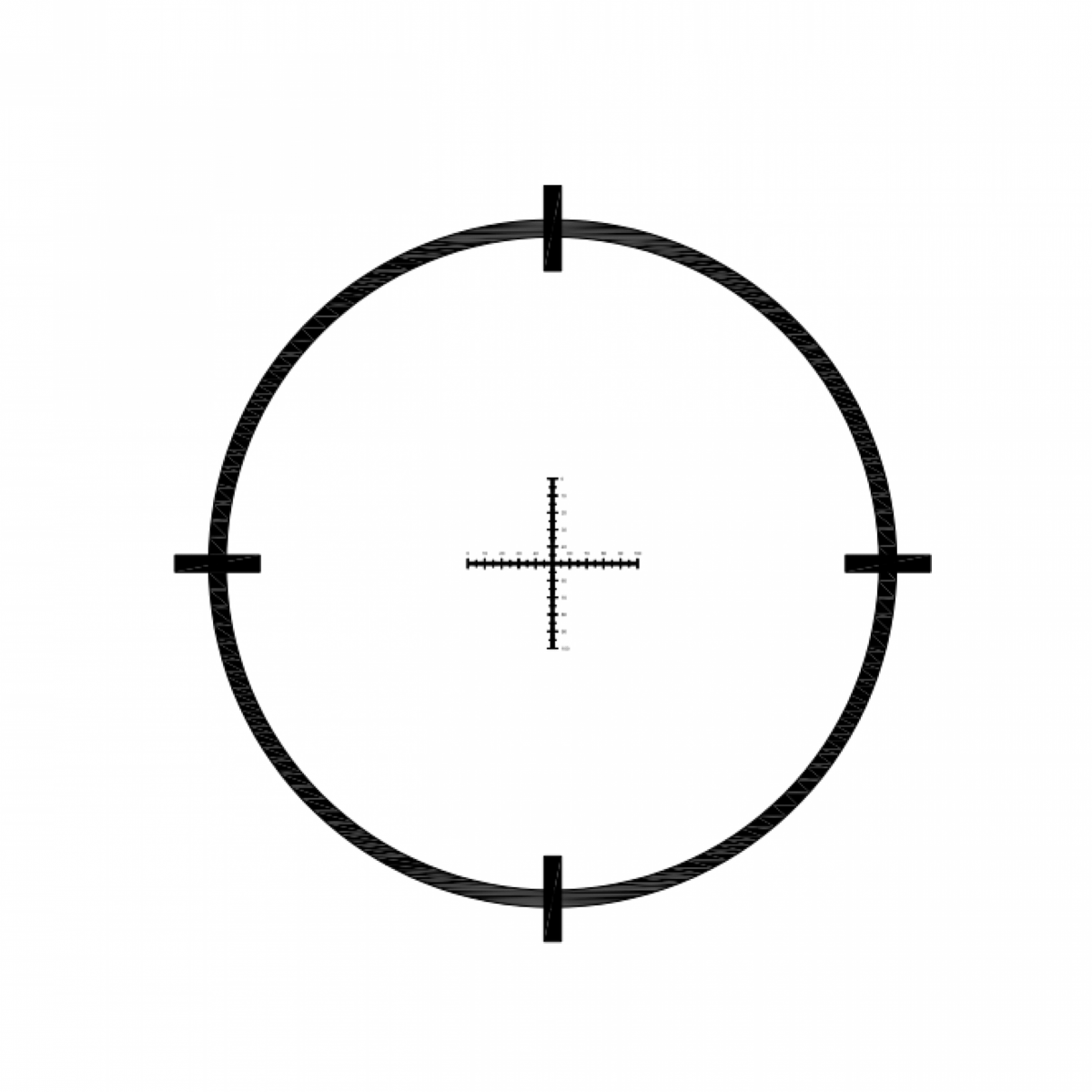

S16		0.003mm(3μm)	Stage Micrometer with Crossed Scales, each 1mm long subdivided into 100 divisions of 0.01mm (10µm). For Transmitted Light.

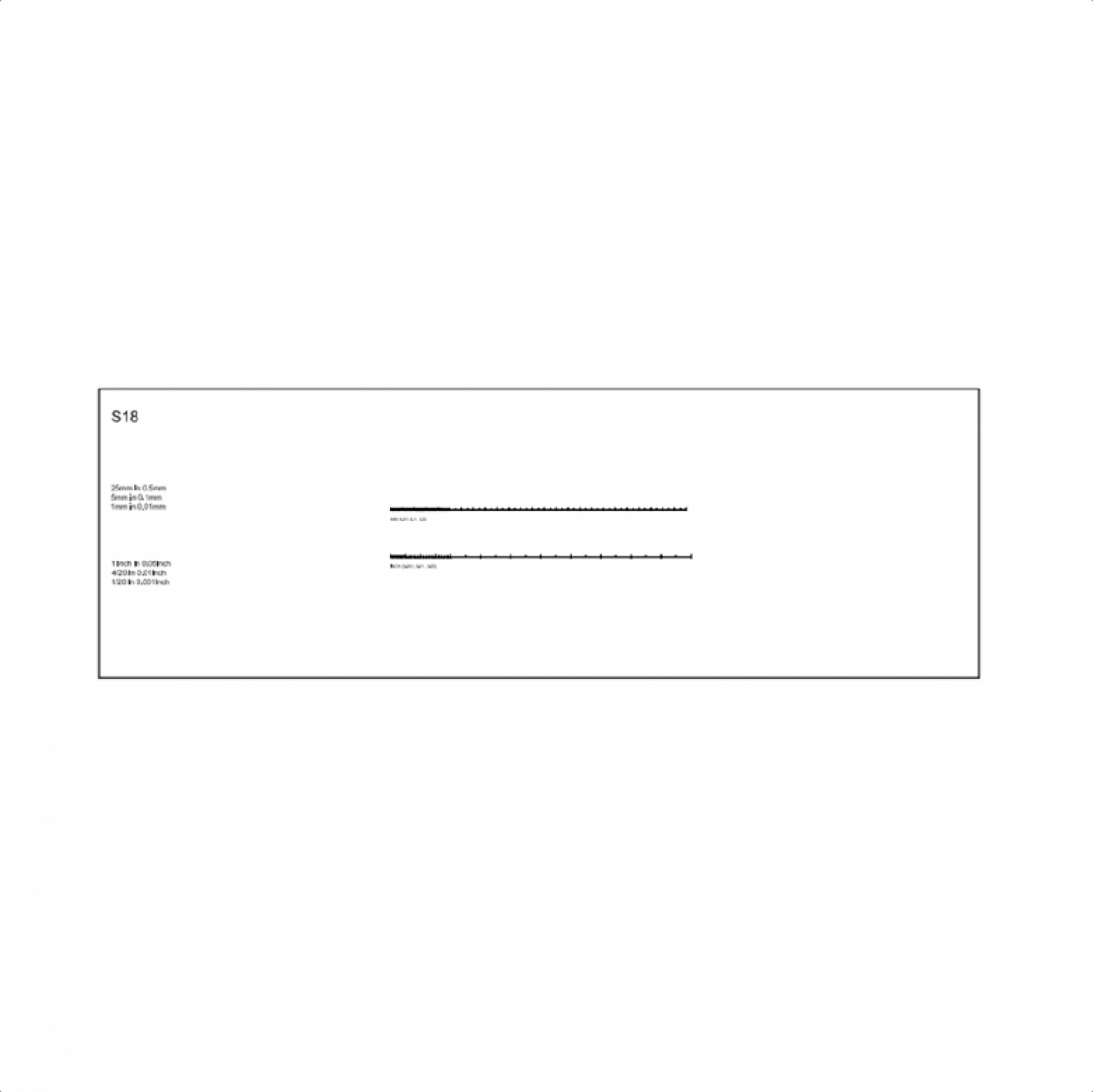

S18		0.0025mm(2.5μm)	Stage Micrometer with 25mm scale in 0.5mm divisions, 5mm in 0.1mm divisions and 1mm in 0.01mm divisions + 1 inch in 0.05 inch divisions, 0.2 inch in 0.01 inch divisions and 0.05 inch in 0.0001 inch divisions. For Transmitted Light.
S20		0.003mm(3μm)	Stage Micrometer with Metric/Imperial Double Scales. 2mm scale in 0.01mm divisions (10µm) and 0.1 inch scale in 0.0005 inch divisions. For Transmitted Light.

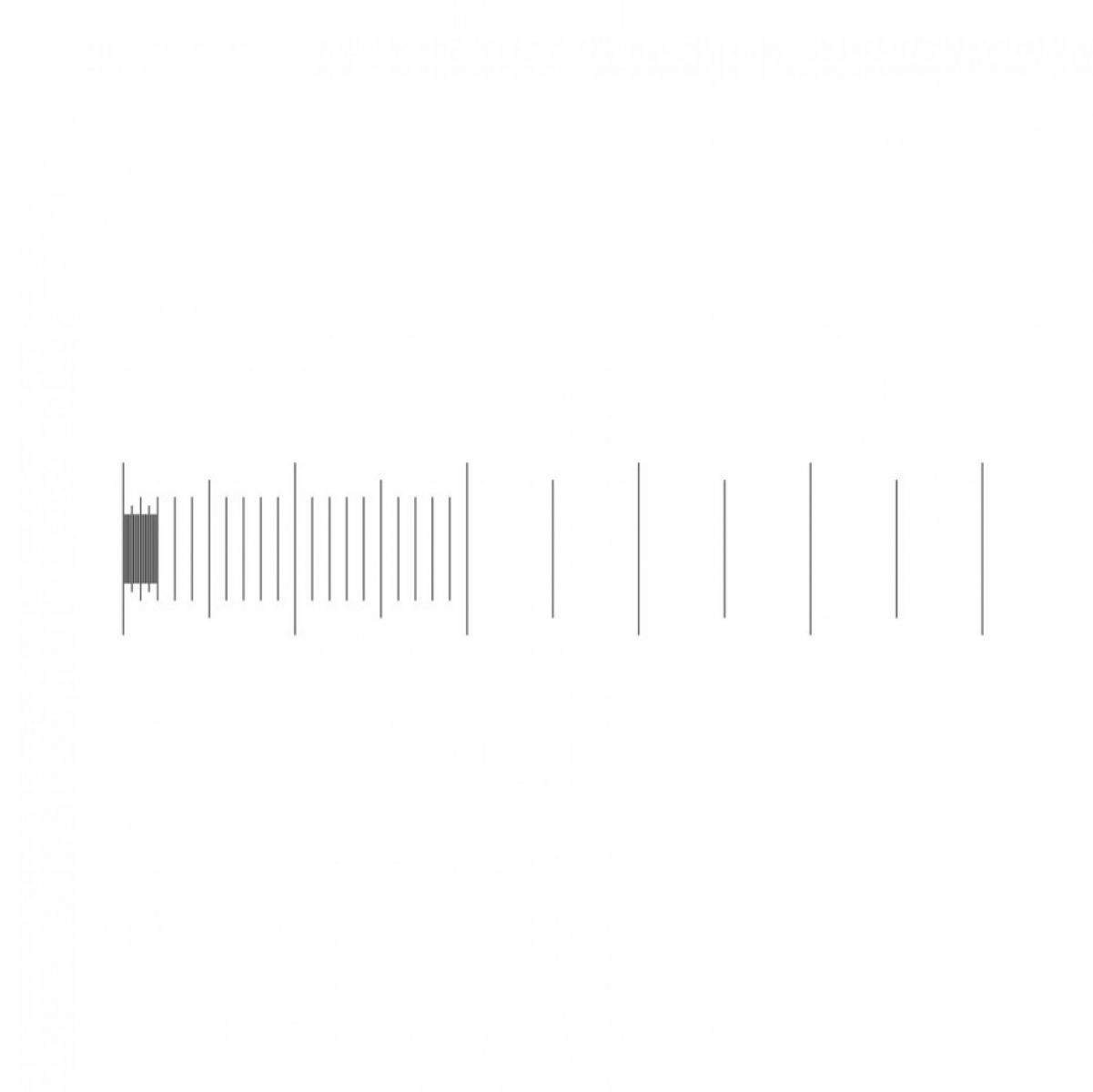

S21		0.0025mm(2.5μm)	Stage Micrometer with Grouped Graduations, 5mm total length scale in 0.5mm divisions, 2mm section subdivided into 0.1mm divisions and final 0.2mm with 0.01mm divisions. For Transmitted Light.

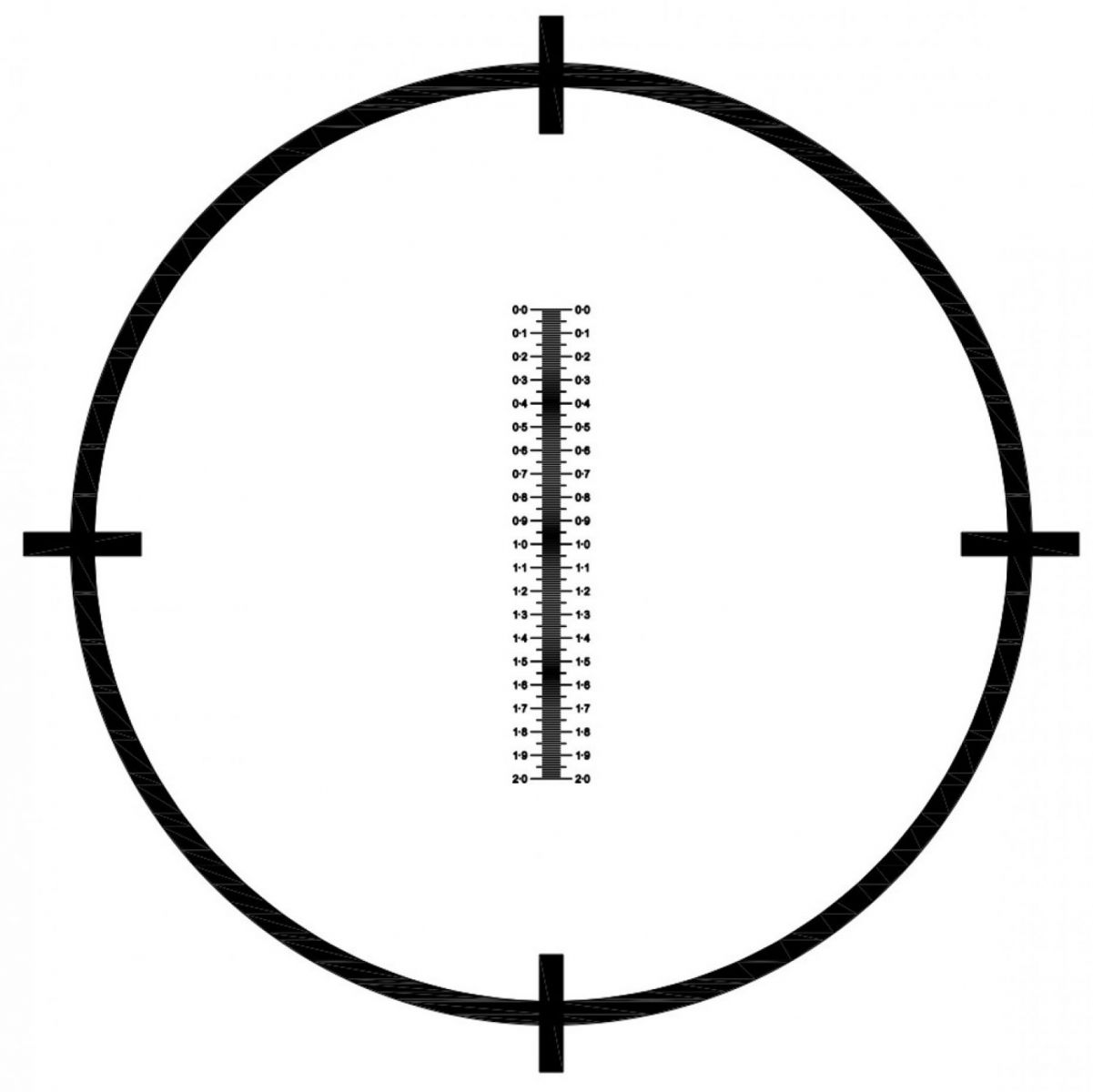

S22		0.003mm(3μm)	Stage Micrometer with 2mm Vertical Scale subdivided into 200 divisions of 0.01mm (10µm). For Transmitted Light.
S48		0.0027mm(2.7μm)	Stage Micrometer with 1mm scale subdivided into 100 divisions of 0.01mm (10µm). No Coverglass fitted. For Transmitted Light.
S78		0.003mm(3μm)	Stage Micrometer with 1mm scale subdivided into 100 divisions of 0.01mm (10µm). For Reflected Light.
